Moviroll roll and reel pushers



Moviroll battery driven pushers offer the advantage of free movement without constraints of pneumatic hoses or electrical cables. These machines are equipped with the highest quality lithium batteries offering long last charge, rapid battery recharge and long life.

Benefits:

  • robust construction

  • easy operation, quick battery changes

  • long life battery, long lasting charge, eco-friendly

  • variable speed for any operator needs

  • forward and reverse gear



Paper industry:  max thrust force 20 000 kg

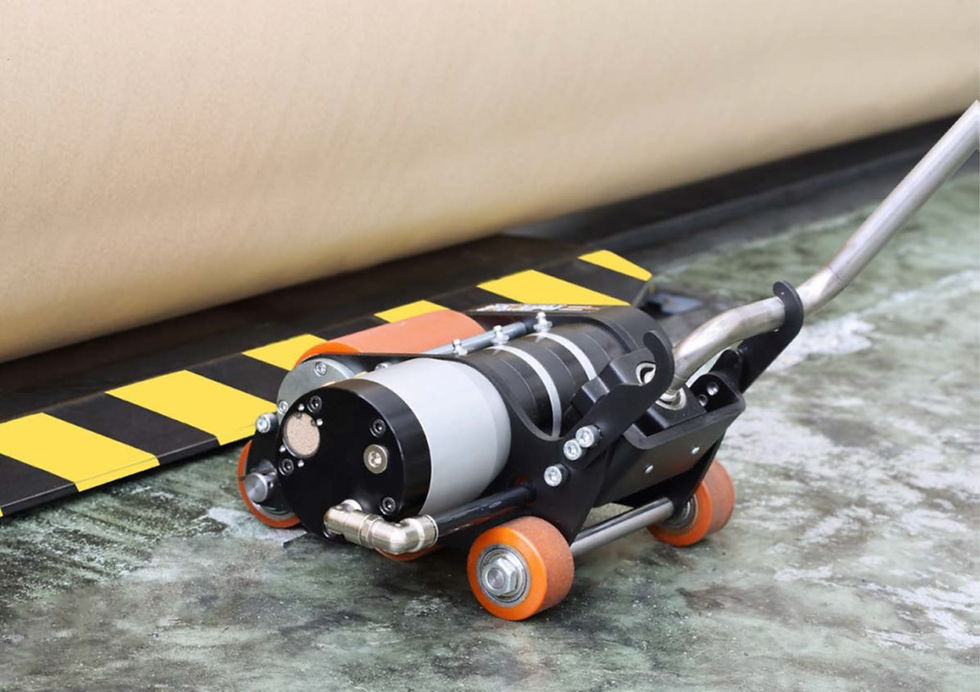

  • MRE : standard pusher for paper rolls, max roll diameter 2100 mm.

  • MRE XS: like above but super compact design, heavy duty, best solution for separating two rolls.

  • MRE LPT: designed especially for bigger rolls like soft paper tissue rolls, max roll diameter 4500 mm.

  • MRE XS LPT: super compact design but heavy duty at the same time, for soft paper rolls, max roll diameter 2100 mm.

Cable industry: max thrust force 50 000 kg

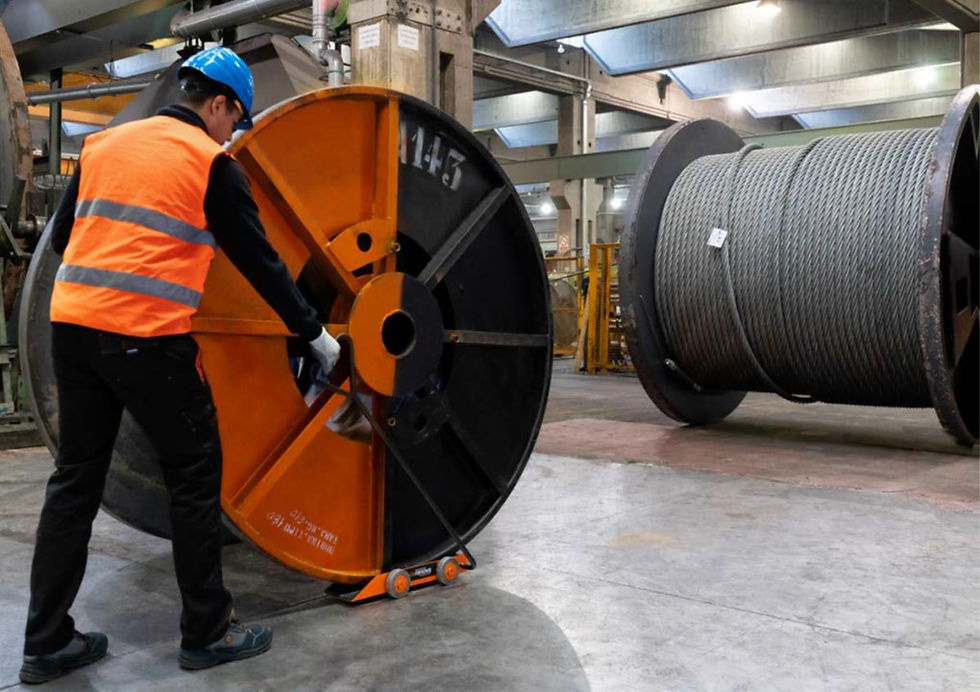

  • MRE L: standard pusher for cable reels, max reel diameter 6000 mm.

  • MRE XS L: super compact design but heavy duty at the same time, max reel diameter 2900 mm.

Vehicles and paper: max thrust force 20 000 kg

  • MRE LP: designed for special applications both in paper and automotive industries, max roll diameter 4500 mm.

Battery roll pushers
MRE XS
press to zoom
MRE L
press to zoom
MRE XS LPT
press to zoom
MRE
press to zoom
1/3
Pneumatic roll pushers

Moviroll pneumatic roll pushers use the power of a high quality pneumatic gear motor powered by pressurized and lubricated air at 6 bar.

Paper and vehicles: max thrust force 20 000 kg

  • MR : standard model for any paper roll, max roll diameter 2600 mm.

  • MR H : like above but engine doesn't need lubricating oil, thus less maintenance costs.

Cable industry: max thrust force 30 000 kg

  • MR L : reduced and controlled speed to ensure safety handling of heaviest reels, max reel diameter 3100 mm.


MR
press to zoom
MR,a
press to zoom
1/3
Accessories

 Rotating plate for paper rolls: rotation 360

  • PRT2000: load cabacity 2000 kg

  • PRT7000: load cabacity 7000 kg

Reel turner for cable reels:

  • RTS8000: max load cabacity 8000 kg

Safety stop wedge for reels and rolls

Push plate for MRE model:

  • designed to push paper rolls on shuttle cart

Handles:

  • A wide range of different handles are available for all battery driven roll pushers.

Air supply kit for pneumatic models:

  • include spiral pipe, lubricator filer, coupling

Rotating plate
Rotating plate

press to zoom
Reel turner
Reel turner

press to zoom
Rotating plate
Rotating plate

press to zoom
Rotating plate
Rotating plate

press to zoom
1/4
